🛠️ Thomson | Inserting a SIM and SD Card

You can insert a SIM card into Thomson laptops to access 4G connectivity, and an SD card to expand the laptop’s storage! 💾📶

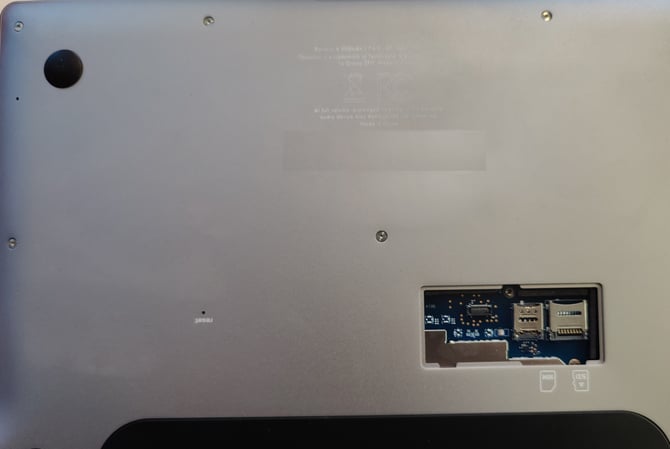

🔧 On the bottom of the laptop, there is a cover that can be opened by removing a single Philips screw.

❕ It’s recommended to use a PH00 Philips screwdriver or bit to remove the screw. ❕     bak

 🔍 Once the cover is open, you’ll see two slots:
    • 📲 The SIM card slot is on the left
    • 💽 The SD card slot is on the right
Thomson 2
🧩 To open the slots: Press down on the gray metal latch at the front of the slot – it will release, allowing you to open it as shown in the image.                                                                   IMG20221031123042
📥 Insert the cards into their respective slots as shown in the image.                                            IMG_20221031_123607
🔒 Finally, close the metal latch over the slot and slide it up to secure the cards.                  IMG20221031123751
🪛 Replace the bottom cover and screw it back in place.

✅ After installation:

  • The cards should now appear in the operating system.
  • 📶 In some cases, you may need to manually enter APN settings for the SIM card if they don’t load automatically.
  • 🔗 You can find instructions for setting up APN by clicking the link below:

👉 Setting up mobile network in Windows 10
